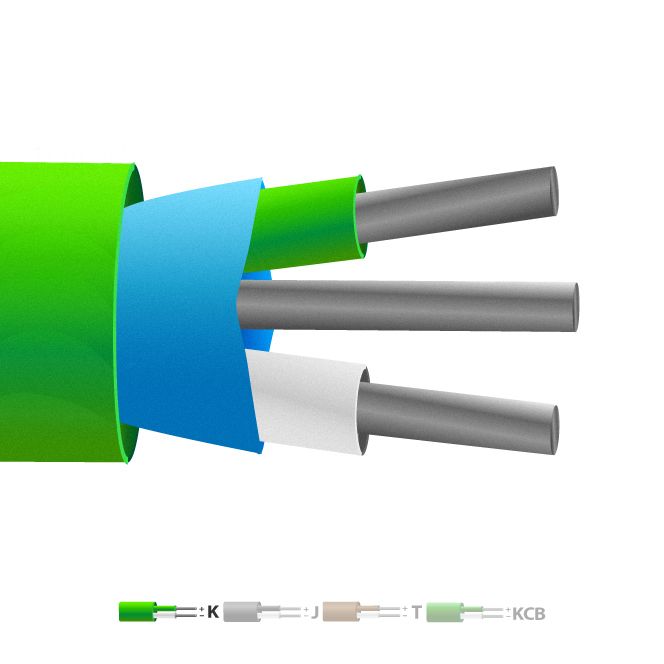

Cble / fil de thermocouple blind en mylar isol en PVC de type K (IEC)
Cambiar moneda
SKU
XE-2112
17,69 €
14,74 €
Spcifications
| Description Générale | Good general purpose insulation for 'light' environments. Waterproof and very flexible. |
|---|---|
| Longueur de câble | 10m, 25m, 50m, 100m, 200m |
| Cable Type | Twisted cores & screened construction for reduced electrical noise |
| Noyau / Brins | 7/0.2mm |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| Outer Colour | Green |
| + Colour | Green |
| - Colour | White |
| Drain Wire | Yes |
| Matériau d'isolation | PVC Insulated with a mylar screen |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 4.5 |
| Max. Température | +105°C |
| Min. Température | -10°C |
| + Conductor | Nickel Chromium |
| - Conductor | Nickel Aluminium |
| Screen | Yes |
| Screen Type | Mylar |
| Normes respectées | Colour code (cores & jacket) to IEC-584-3 |
| Type de thermocouple | K |
| Tolérance | Class 2 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
