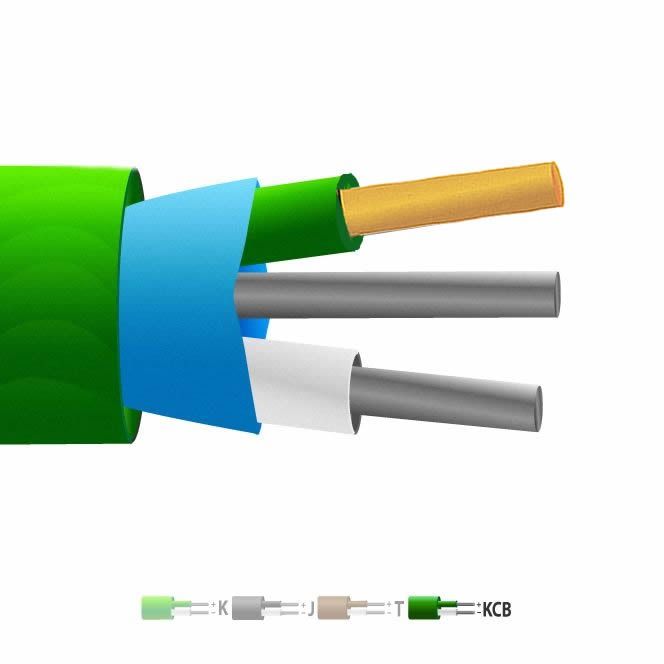

Type VX (KCB) PVC Cble / fil de thermocouple blind en Mylar (IEC)
Le cble compensateur ressemble aux caractristiques thermolectriques du thermocouple concern sur une plage de temprature ambiante limite, de 0 80C gnralement. tant donn que ces cbles sont fabriqus partir de matriaux peu coteux, des conomies peuvent tre ralises sur les installations de lusine par rapport lutilisation dun vritable cble dextension de thermocouple. La tolrance sur chaque brin de fil est de +/- 0,02 mm.
Spcifications
| Description Générale | Good general purpose insulation for 'light' environments. Waterproof and very flexible. |
|---|---|
| Longueur de câble | 10m, 25m, 50m, 100m, 200m |
| Cable Type | Twisted cores & screened construction for reduced electrical noise |
| Noyau / Brins | 7/0.2mm |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| Outer Colour | Green |
| + Colour | Green |
| - Colour | White |
| Matériau d'isolation | PVC Insulated with a mylar screen |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 2.3 |
| Max. Température | +105°C |
| Min. Température | -10°C |
| + Conductor | Copper |
| - Conductor | Constantan |
| Screen | Yes |
| Screen Type | Mylar |
| Normes respectées | Colour code (cores & jacket) to IEC-584-3 |
| Type de thermocouple | VX (KCB) |
| Tolérance | Class 2. The tolerance on each individual strand of wire is +/- 0.02mm |
