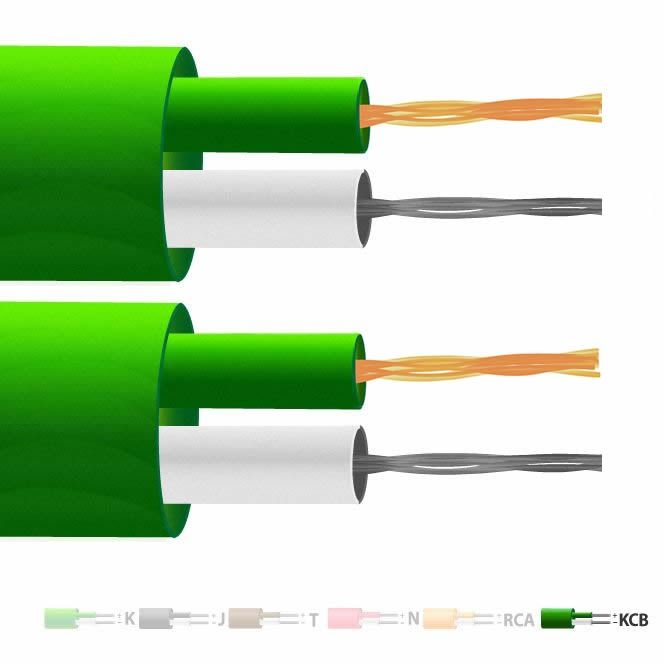

Cble / fil de thermocouple paire plate isol en PVC de type VX (KCB) pour une utilisation avec des thermocouples de type K
Cambiar moneda
SKU
XE-2550
5,89 €
4,91 €
Spcifications
| Description Générale | Good general purpose insulation for 'light' environments. Waterproof and very flexible. |
|---|---|
| Longueur de câble | 10, 25, 50, 100, 200m |
| Cable Type | Flat pair construction |
| Noyau / Brins | 7/0.2mm or 13/0.2mm |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| Conductor Cross Section 13/0.2 (mm2) | 0.408 |
| Outer Colour | Green |
| + Colour | Green |
| - Colour | White |
| Matériau d'isolation | PVC Insulated |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 2.3 |
| Loop Resistance 13/0.2 (Ohms per combined metre) | 1.2 |
| Max. Température | +105°C |
| Min. Température | -10°C |
| + Conductor | Copper |
| - Conductor | Constantan |
| Screen | No |
| Normes respectées | Colour code (cores & jacket) to IEC-584-3 |
| Type de thermocouple | VX (KCB) |
| Tolérance | Class 2 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
