Type K PFA isol paire plate thermocouple cble / fil (IEC)
Cambiar moneda
SKU
XE-2133
8,23 €
6,86 €

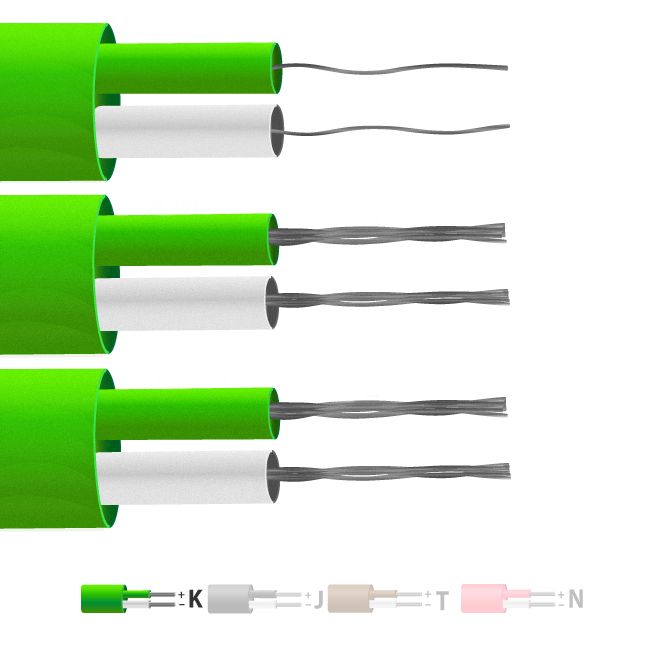

Type K PFA isol paire plate thermocouple cble / fil (IEC)
PFA Paire plate isole en tflon. PFA Teflon a une bonne rsistance mcanique et flexibilit, rsistant aux huiles, acides et autres fluides indsirables, gaz, vapeur et pression.
Spcifications
| Description Générale | Resistant to oils, acids other adverse agents and fluids. Good mechanical strength and flexibility. PTFE better for steam/elevated pressure environments. |
|---|---|
| Longueur de câble | 5m, 10m, 25m, 50m, 100m |
| Cable Type | Single pair of PFA insulated conductors, laid flat with PFA jacket |
| Noyau / Brins | 1/0.2mm, 1/0.315mm, 7/0.2mm, 1/0.508mm |
| Conductor Cross Section 1/0.315 (mm2) | 0.078 |
| Conductor Cross Section 1/0.508 (mm2) | 0.203 |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| Outer Colour | Green |
| + Colour | Green |
| - Colour | White |
| Drain Wire | No |
| Matériau d'isolation | PFA Insulated |
| Loop Resistance 1/0.315 (Ohms per combined metre) | 12.8 |
| Loop Resistance 1/0.508 (Ohms per combined metre) | 4.9 |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 4.5 |
| Max. Température | +260°C |
| Min. Température | -75°C |
| + Conductor | Nickel Chromium |
| - Conductor | Nickel Aluminium |
| Screen | No |
| Normes respectées | Colour code (cores & jacket) to IEC-584-3 |
| Type de thermocouple | K |
| Tolérance | Class 1 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
