Thermocouple jonction expose ANSI isol PFA (conducteurs de 0,076 mm) - Type K
Cambiar moneda
Vous avez besoin de calibrer votre capteur de temprature ? | Traable selon les normes dtalonnage ISO17025 (UKAS), Labfacility offre un choix dtalonnage traable en 3 ou 5 points laide de notre installation dtalonnage interne. Veuillez noter que si vous ajoutez une option de calibrage votre commande, vous serez contact pour les informations de livraison. |
|---|
Spcifications

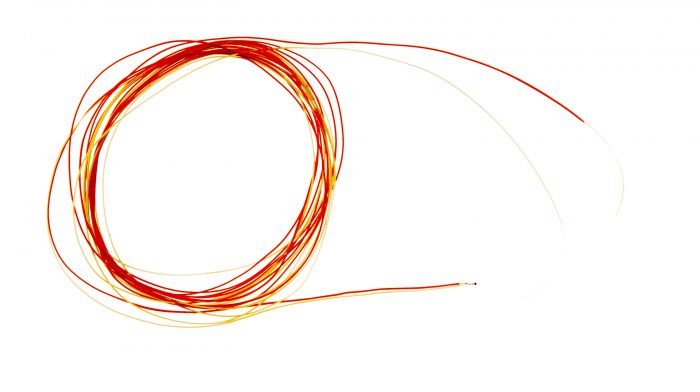

| Description Générale | Fine Gauge Exposed Welded Tip Thermocouple |
|---|---|
| Type de capteur | Fast response, welded tip exposed junction |
| Type de thermocouple | K |
| Thermocouple Junction | Exposed |
| Longueur de câble | 300mm, 1m |
| Cable Type | Teflon® PFA insulated wires |
| Noyau / Brins | 0.003” (0.076mm) conductors |
| Cable Termination | Bare tails |
| Max. Température | +260°C |
| Min. Température | -75°C |
| Normes respectées | ANSI colour coded |
Labfacility - Company Overview Presentation
Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.
Why is Calibration so important?
The goal of calibration is to minimise any measurement uncertainty by ensuring the accuracy of test equipment. Labfacility offer a 3 or 5 point calibration, Traceable to ISO17025 (UKAS) calibration standards, using our in-house calibration facility.
Thermocouple Product Guide - Labfacility
An overview of the different thermocouples available from Labfacility.
