Thermocouple isolation minrale de style industriel avec tte de borne KNE - Types K,J
Cambiar moneda
Vous avez besoin de calibrer votre capteur de temprature ? | Traable selon les normes dtalonnage ISO17025 (UKAS), Labfacility offre un choix dtalonnage traable en 3 ou 5 points laide de notre installation dtalonnage interne, vous pouvez slectionner nimporte quel point de temprature entre -10C et +200C. Veuillez noter que si vous ajoutez une option de calibrage votre commande, vous serez contact pour les informations de livraison. |
|---|
| Description Générale | Highly flexible, sheath can be bent/formed to suit many applications and processes |
|---|---|

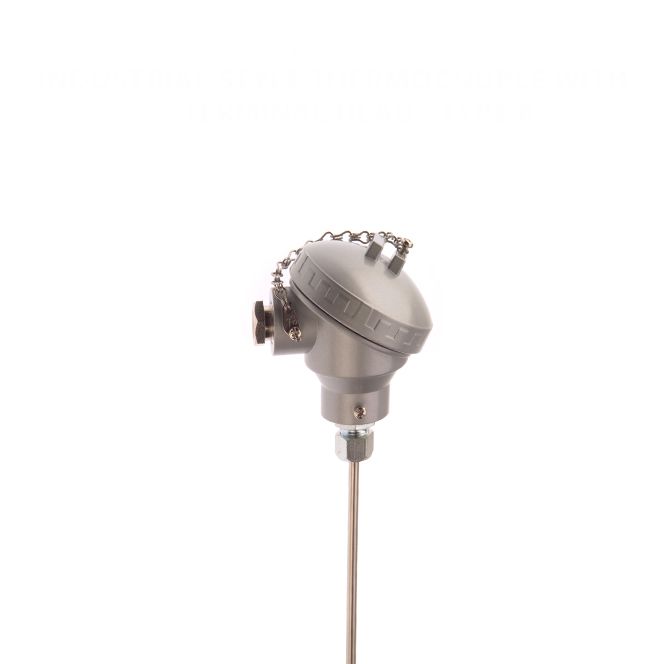

| Type de capteur | Mineral insulated Thermocouple fitted with KNE terminal head |
| Type de thermocouple | Type K and J available |
| Thermocouple Junction | Insulated hot junction |
| Diamètre de la sonde | 6.0mm diameter |
| Matériau de la gaine | 310 stainless steel sheath |
| Head Type | KNE, Cast aluminium finish, screw type lid with chain |
| Gland | M16 x 1.5mm Plated brass gland fitted |
| Max. Température | +1100°C |
| Min. Température | -40°C |
| IP Rating | IP67 |
Labfacility - Company Overview Presentation
Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.
Why is Calibration so important?
The goal of calibration is to minimise any measurement uncertainty by ensuring the accuracy of test equipment. Labfacility offer a 3 or 5 point calibration, Traceable to ISO17025 (UKAS) calibration standards, using our in-house calibration facility.
Thermocouple Product Guide - Labfacility
An overview of the different thermocouples available from Labfacility.
