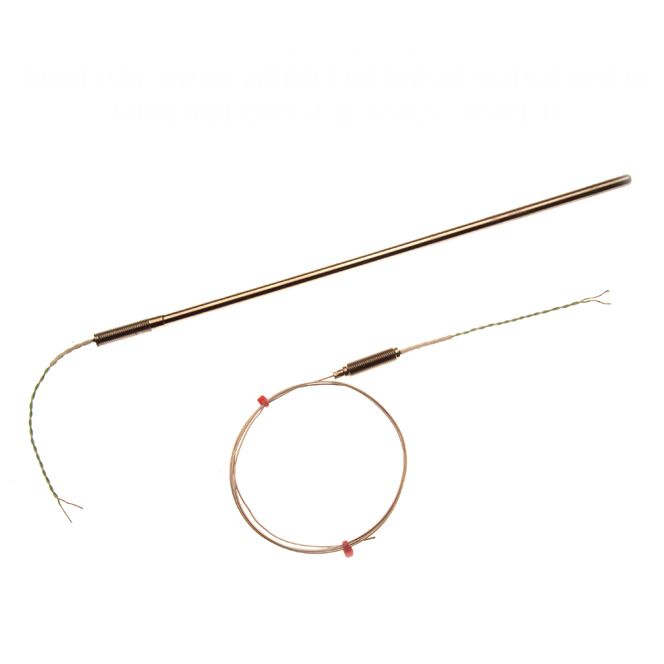

Thermocouple isolation minrale avec pot filet et 100 mm de cble IEC double torsad isol PFA - Types K, J, T, N
Cambiar moneda
Thermocouple isolation minrale de diffrentes longueurs termin par 100 mm, isol PFA double torsad IEC, 7 / 0,2 mm.
Vous avez besoin de calibrer votre capteur de temprature ? | Traable selon les normes dtalonnage ISO17025 (UKAS), Labfacility offre un choix dtalonnage traable en 3 ou 5 points laide de notre installation dtalonnage interne. Veuillez noter que si vous ajoutez une option de calibrage votre commande, vous serez contact pour les informations de livraison. |
|---|
Spcifications
| Description Générale | Mineral insulated thermocouple in various lengths terminatied with 100mm,PFA insulated twin twisted IEC,7/0.2mm. |
|---|---|
| Type de capteur | Mineral Insulated |
| Type de thermocouple | K,J,T,N |
| Element/hot junction | Single element, junction insulated from sheath (offers protection against spurious electrical signals) |
| Diamètre de la sonde | 1.0, 1.5, 3.0, 4.5 & 6.0mm |
| Longueur de la sonde | 150, 250, 500, 1000, 1500 & 2000mm |
| Matériau de la gaine | K - Stainless steel 310, J - Stainless steel 321, T - Stainless steel 316, N - Nicrosil |
| Type de pot | M8 x 1.0mm fine pitch threaded pot seal (200°C) |
| Longueur de câble | 100mm |
| Cable Type | PFA insulated twin twisted IEC |
| Noyau / Brins | 7/0.2mm |
| Type de résiliation | Bare tails |
| Max. Température | K +1100°C for 1.5 & 3.0mm diameters +750°C for 1.0mm diameter, J +760°C, T +400°C, N +1300°C. |
| Min. Température | K -40°C, J -100°C, T -100°C, N -100°C |
| Normes respectées | In accordance with IEC 584 |
Labfacility - Company Overview Presentation
Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.
Why is Calibration so important?
The goal of calibration is to minimise any measurement uncertainty by ensuring the accuracy of test equipment. Labfacility offer a 3 or 5 point calibration, Traceable to ISO17025 (UKAS) calibration standards, using our in-house calibration facility.
Thermocouple Product Guide - Labfacility
An overview of the different thermocouples available from Labfacility.
