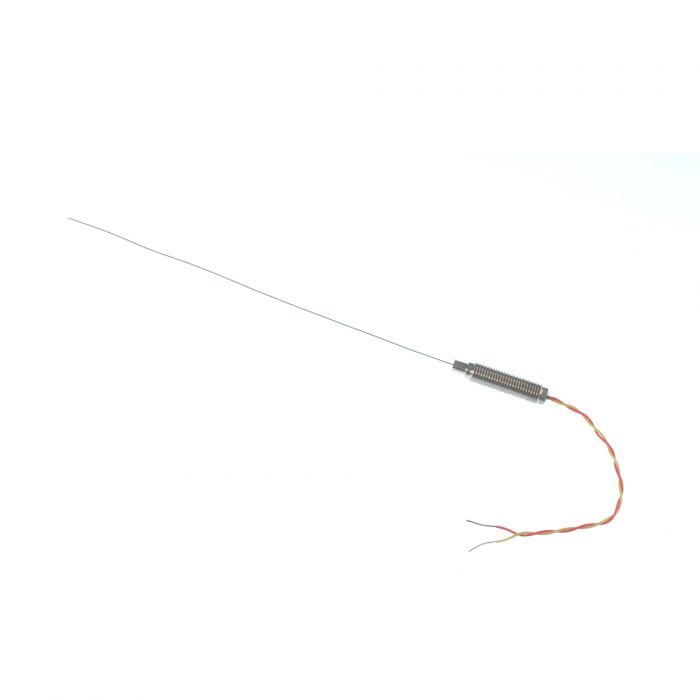

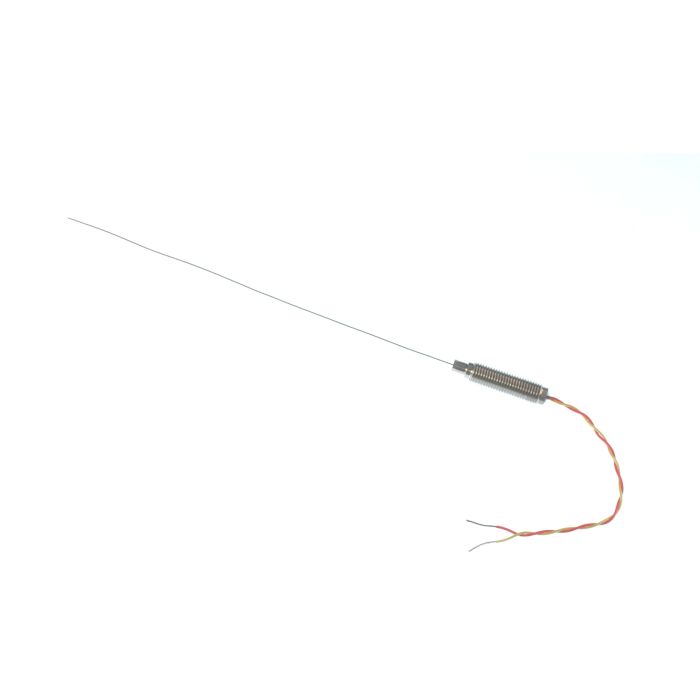

Thermocouple isolation minrale avec pot filet et 100 mm de plomb ANSI double torsad isol PFA - Type K
Cambiar moneda
Vous avez besoin de calibrer votre capteur de temprature ? | Traable selon les normes dtalonnage ISO17025 (UKAS), Labfacility offre un choix dtalonnage traable en 3 ou 5 points laide de notre installation dtalonnage interne. Veuillez noter que si vous ajoutez une option de calibrage votre commande, vous serez contact pour les informations de livraison. |
|---|
Spcifications
| Description Générale | Highly flexible, sheath can be bent/formed to suit many applications and processes |
|---|---|
| Type de thermocouple | K |
| Thermocouple Junction | Insulated hot junction |
| Diamètre de la sonde | Diameters include 1.0, 1.5, 3.0 & 6.0mm |
| Matériau de la gaine | Choice of 310 stainless steel or Inconel® Alloy 600 sheath |
| Type de pot | M8 x 1.0mm fine pitch threaded pot seal (200°C) |
| Longueur de câble | 100mm |
| Cable Type | PFA twin twisted |
| Noyau / Brins | 7/0.2mm |
| Cable Termination | Bare tails |
| Max. Température | +1100°C (+750°C for 1.0mm) |
| Normes respectées | colour coded to ANSI MC96.1. |
Labfacility - Company Overview Presentation
Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.
Why is Calibration so important?
The goal of calibration is to minimise any measurement uncertainty by ensuring the accuracy of test equipment. Labfacility offer a 3 or 5 point calibration, Traceable to ISO17025 (UKAS) calibration standards, using our in-house calibration facility.
Thermocouple Product Guide - Labfacility
An overview of the different thermocouples available from Labfacility.
