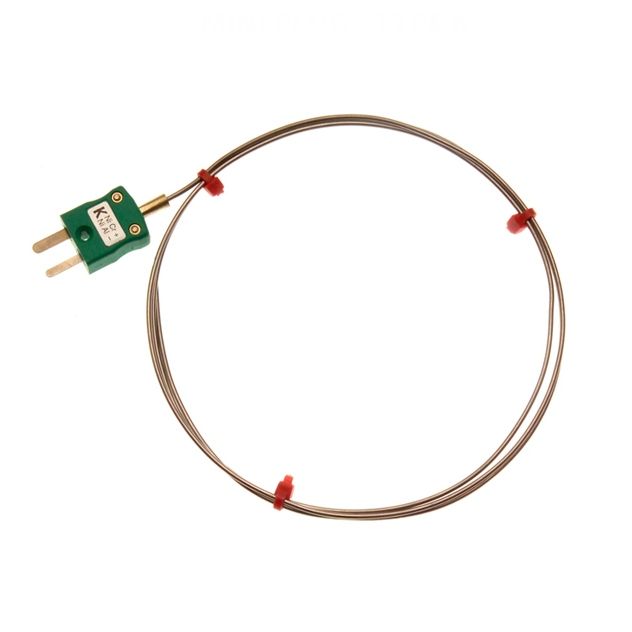

Thermocouple isolation minrale avec prise miniature IEC - Types K,J,T,N
Cambiar moneda
SKU
XE-3216
19,70 €
16,42 €
26,50 €
22,08 €
| Description Générale | Highly flexible, sheath can be bent/formed to suit many applications and processes |
|---|---|
| Type de capteur | Mineral Insulated |
| Type de thermocouple | K, J, T & N |
| Element/hot junction | Single element, junction insulated from sheath (offers protection against spurious electrical signals) |
| Diamètre de la sonde | 1.0, 1.5, 2.0 & 3.0mm |
| Longueur de la sonde | 150, 250, 500 & 1000mm |
| Matériau de la gaine | K - Stainless steel 310, J - Stainless steel 321, T - Stainless steel 316, N - Nicrosil |
| Type de résiliation | Miniature flat pin plug, colour coded in accordance IEC 584 |
| Max. Température | K +1100°C for 1.5 & 3.0mm diameters +750°C for 1.0mm diameter, J +760°C, T +400°C, N +1300°C. Plug Max. temperature range: 200°C |
| Min. Température | K -40°C, J -100°C, T -100°C, N -100°C |
| Normes respectées | IEC 584 |
| Type de connecteur | Plug |
| Taille du connecteur | Miniature |
| Couleur | K - Green, J - Black, T - Brown, N - Pink |
Labfacility - Company Overview Presentation
Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.
Why is Calibration so important?
The goal of calibration is to minimise any measurement uncertainty by ensuring the accuracy of test equipment. Labfacility offer a 3 or 5 point calibration, Traceable to ISO17025 (UKAS) calibration standards, using our in-house calibration facility.
Thermocouple Product Guide - Labfacility
An overview of the different thermocouples available from Labfacility.
