Type J Fibre de verre Isolé Flat Pair thermocouple Câble / Fil (IEC)

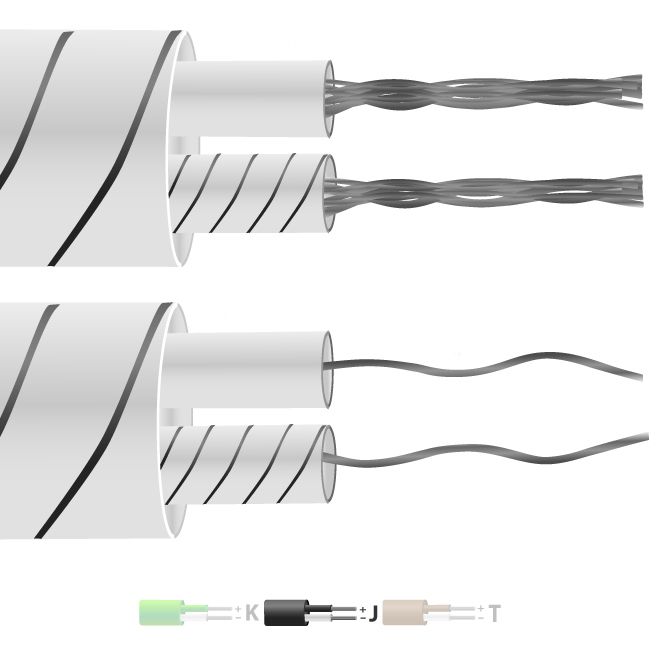

Construction de paire plate isolée en fibre de verre, conducteurs posés à plat, fibre de verre isolée avec une combinaison en fibre de verre, silicone verni partout. Bonne résistance à la température mais ne convient pas là où des fluides sont présents.
| Description Générale | Good temperature range but will not prevent ingress of fluids. Fairly flexible but does not provide good mechanical protection. |
|---|---|
| Longueur de câble | 10m, 25m, 50m, 100m |
| Cable Type | Flat pair cable |
| Noyau / Brins | 1/0.2mm, 1/0.315mm, 7/0.2mm |
| Conductor Cross Section 1/0.2 (mm2) | 0.032 |
| Conductor Cross Section 1/0.315 (mm2) | 0.078 |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| Outer Colour | Black & White |
| + Colour | Black |
| - Colour | White |
| Drain Wire | No |
| Matériau d'isolation | Glassfibre insulated |
| Loop Resistance 1/0.2 (Ohms per combined metre) | 19.3 |
| Loop Resistance 1/0.315 (Ohms per combined metre) | 7.8 |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 2.7 |
| Max. Température | +350°C (short periods up to 400°C) |
| Min. Température | -60°C |
| + Conductor | Iron |
| - Conductor | Constantan |
| Screen | No |
| Normes respectées | Colour code (cores & jacket) to IEC-584-3 |
| Type de thermocouple | J |
| Tolérance | Class 2 |
