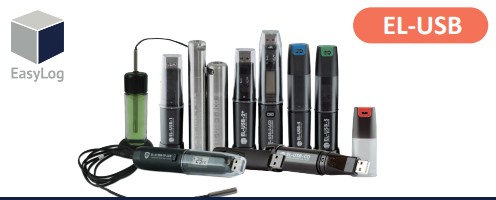

Enregistreurs de donnes EL-USB

The EL-USB-LITE standalone data logger measures temperature every 30 minutes over a -10 to +50°C (+14 to +122°F) range. Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with a CR1620 battery.

The EL-USB-1 is a USB temperature data logger with a measurement range of -35 to +80°C (-31 to +176°­­F). The data logger can store up to 16,382 readings and is supplied with a long-life replaceable lithium battery, allowing the unit to log data continually for at least one year (depending on logging rate and temperature). The status of EL-USB-1 is indicated by flashing red, green and orange LEDs. The data logger is protected against moisture to IP67 standard when the protective cap is fitted.

Data logger configuration software is supplied, allowing the user to easily set-up the data logger. Selectable parameters include logging rate, measurement units, high & low alarms and start-time. The logged data stored in EL-USB-1 is downloaded via the configuration software. Once downloaded data can be graphed, printed or exported to other applications.

The EL-USB-1-PRO standalone data logger measures more than 32,000 readings over a -40 to +125°C (-40 to +257°­­F) range. Its robust stainless steel assembly provides protection from corrosion, impact and water ingress to IP67/NEMA 4X.

Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with a specialist high temperature 2/3 AA battery.

The EL-USB-1-LCD standalone data logger measures more than 16,000 readings over a -35 to +80°C (-31 to +176°­­F) range. At the touch of a button, use the on-board display to cycle between the current, minimum and maximum temperature logs seen during the session.

Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with ½ AA battery and wall mount clip.

The EL-USB-2 data logger measures and stores up to 16,382 relative humidity and 16,382 temperature readings over 0 to 100%RH and -35 to +80°C (-31 to +176°F) measurement ranges. The user can easily set up the logging rate and start time, and download the stored data by plugging the module straight into a PCs USB port and running the purpose designed software under Windows 2000, XP, Vista and 7. Relative humidity, temperature and dew point (the temperature at which water vapour present in the air begins to condense) data can then be graphed, printed and exported to other applications.

The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for a year. Status indication is via flashing red and green LEDs. The logger is protected against ingress from water and dust to IP67 standard when the plastic cap and seal are fitted.

The EL-USB-2-LCD standalone data logger measures over 16,000 readings over a -35 to +80°C (-31 to +176°­­F) and 0 to 100% humidity (RH) range. At the touch of a button, use the on-board display to cycle between the current, minimum and maximum temperature logs seen during the session for both temperature and humidity. Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free EasyLog software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with ½ AA battery and wall mount clip.

The EL-USB-3 standalone data logger measures more than 32,000 readings over a 0 to 30V d.c. range at a resolution of 50 mV d.c. The data logger is supplied with a 0 to 30V d.c. cap featuring a pair of screw terminals and measurement leads terminating in crocodile clips. Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with ½ AA battery and wall mount clip.

The EL-USB-4 standalone data logger measures more than 32,000 readings over a 4-20mA d.c. measurement range. The data logger is supplied with a cap featuring a pair of screw terminals and measurement leads terminating in crocodile clips. Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free EasyLog software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with ½ AA battery and wall mount clip.

The EL-USB-TC standalone data logger measures over 32,000 readings from inter-changeable J, K or T type thermocouples. Supplied with a K Type probe, its measurement range out of the box is from 0 to 200°C (32 to 392°F). Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with ½ AA battery, K-type probe and wall mount clip. The EL-USB-TC is suitable for a wide variety of applications particularly those which require a wide temperature measurement range.

The EL-USB-TC-LCD standalone data logger measures and stores over 32,000 temperature readings from either a K, J or T type thermocouple. The thermocouple is attached via the thermocouple socket at the base of the unit. The user can easily set up the logger and view downloaded data by plugging the module into a PC's USB port and using the supplied software. Data can then be graphed, printed and exported to other applications.

The high contrast LCD can show several different temperature variables. The user can cycle between these using the push button. The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for up to 1 year.

The EL-USB-TP-LCD standalone data logger records and displays over 32,000 temperature readings from the supplied thermistor probe. The EL-USB-TP-LCD features an LCD and push-button which allow the user to cycle through the most recent, highest and lowest stored readings. The EL-WIN-USB software enables quick configuration and data download via the USB port available to download for free. Supplied with thermistor probe and long-life lithium battery. The EL-USB-TP-LCD is suitable for a wide variety of applications including medical and food.
